Precision Instrumentationn
Precision-engineered connection solutions for high-pressure piping, wellhead completions, and critical industrial fluid systems.
SS & High Nickel Fittings
Advanced Fluid Control
Double-ferrule and threaded compression fittings designed for leak-proof performance in instrumentation tubing systems and chemical injection lines.
- Materials: SS316/316L, Monel 400, Inconel 625, and Hastelloy C276
- Design: Twin-ferrule mechanical grip ensures vibration resistance
- Pressure: Rated for vacuum to 10,000+ PSI working pressure
- Standards: ASTM A276/A479 compliant with silver-plated nut threads
- Applications: Analytical systems, offshore platforms, and pilot plants

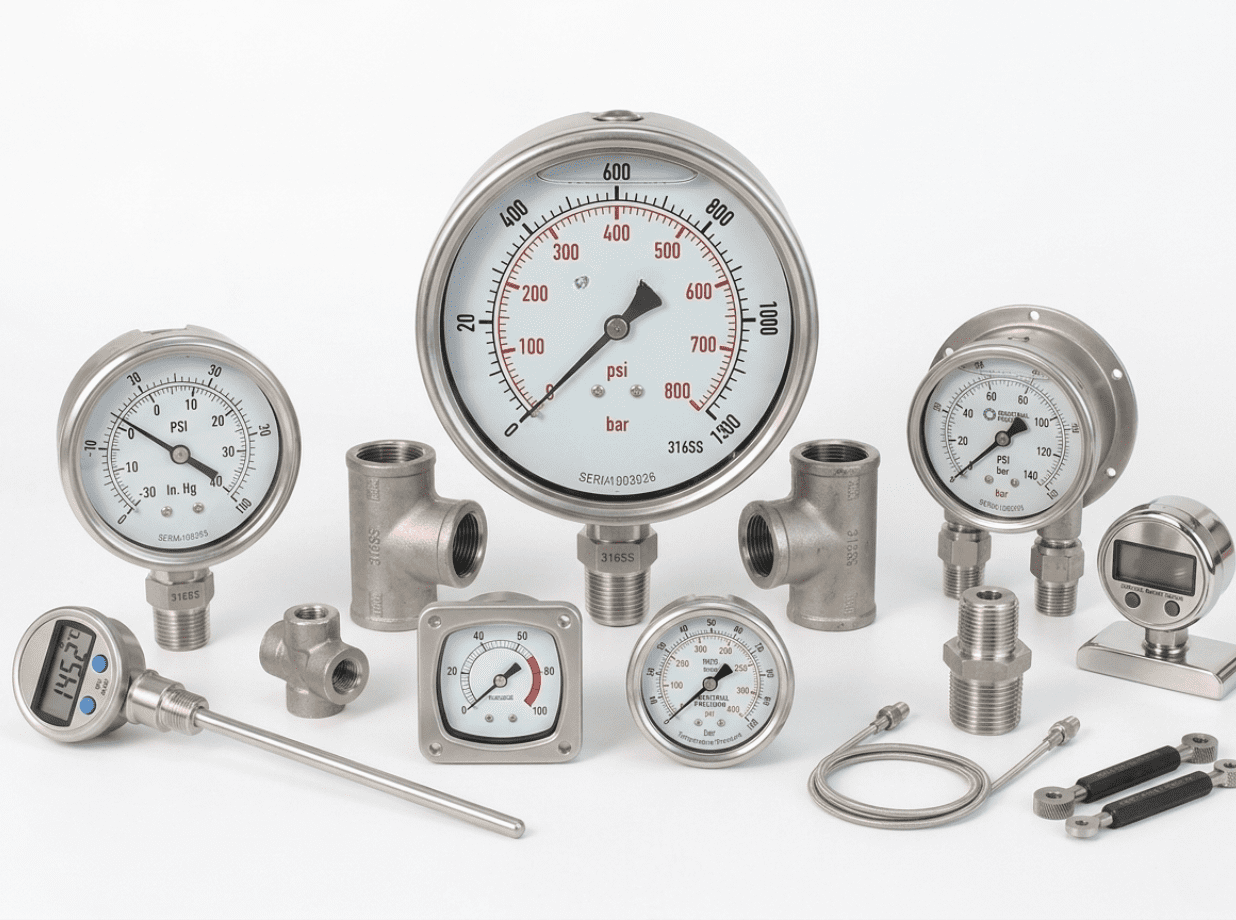

Industrial Gauges
Critical Monitoring
Heavy-duty pressure and temperature gauges built to provide accurate visual monitoring of process conditions under intense pulsation and vibration.
- Type: Bourdon Tube, Diaphragm, or Bimetallic (Temperature)
- Case: Stainless steel 304/316 with safety glass and blow-out protection
- Filling: Glycerin or Silicone liquid-filled to dampen pointer flutter
- Accuracy: Class 1.0 or 0.5 per EN 837-1 / ASME B40.100
- Protection: Over-pressure protected with available chemical seals

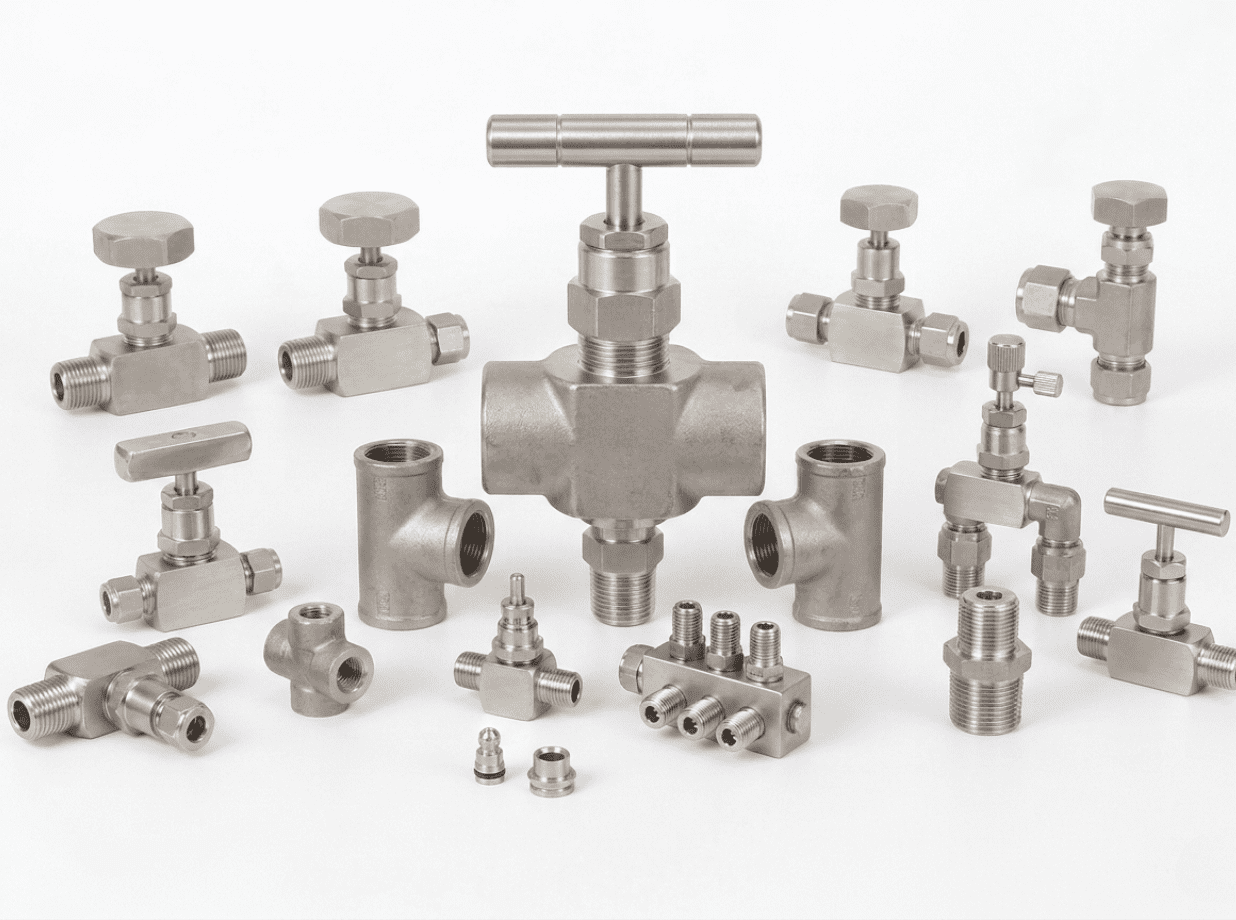

Needle Valves
Precision Regulation
Fine-thread flow control valves providing positive shut-off and precise metering for liquids and gases in instrumentation manifolds.
- Configurations: Inline, Angle, and Multi-port Manifold patterns
- Stem Design: Non-rotating vee or blunt tips for repeatable sealing
- Sealing: PTFE or Graphite packing for high-temperature service
- Safety: Back-seated stem design prevents blowout under pressure
- Handles: Ergonomic T-bar or round handles in stainless steel
