Plug Valve
Dehu plug valves act as quarter-turn isolation valves, allowing operators to isolate portions of their flow line or specific pumping units from the entire pumping system. Designed for minimum space, fast response, and low pressure drop.
- Standard service up to 15,000 psi
- Sour service (H2S) up to 10,000 psi
- Interchangeable parts with major brands
Rugged Design
Forged alloy steel body for extreme durability under high pressure.
Low Torque
Precision machined components to reduce required operating torque.
Fast Responsen
Simple quarter-turn operation for immediate flow isolation.
Serviceable
Bottom entry design allows for easy maintenance and component replacement.

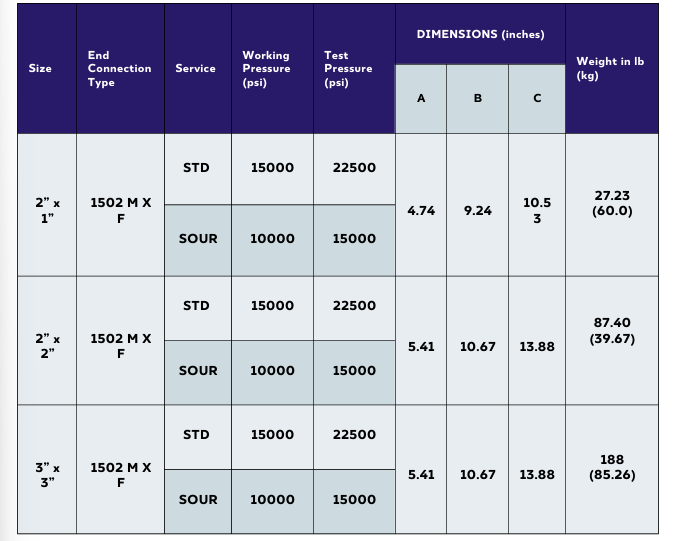

Technical Specifications

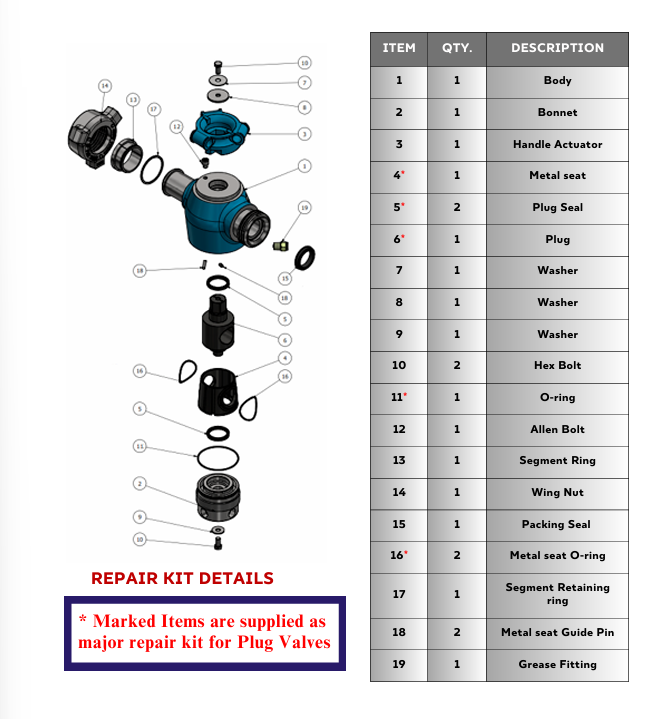

PLUG VALVE PART LIST
