Integral Fittings & Pup joints
Precision Pressure Connections
High-strength forged components designed to eliminate leak paths in high-pressure manifolds and flowlines.
- Pressure: Up to 15,000 PSI CWP.

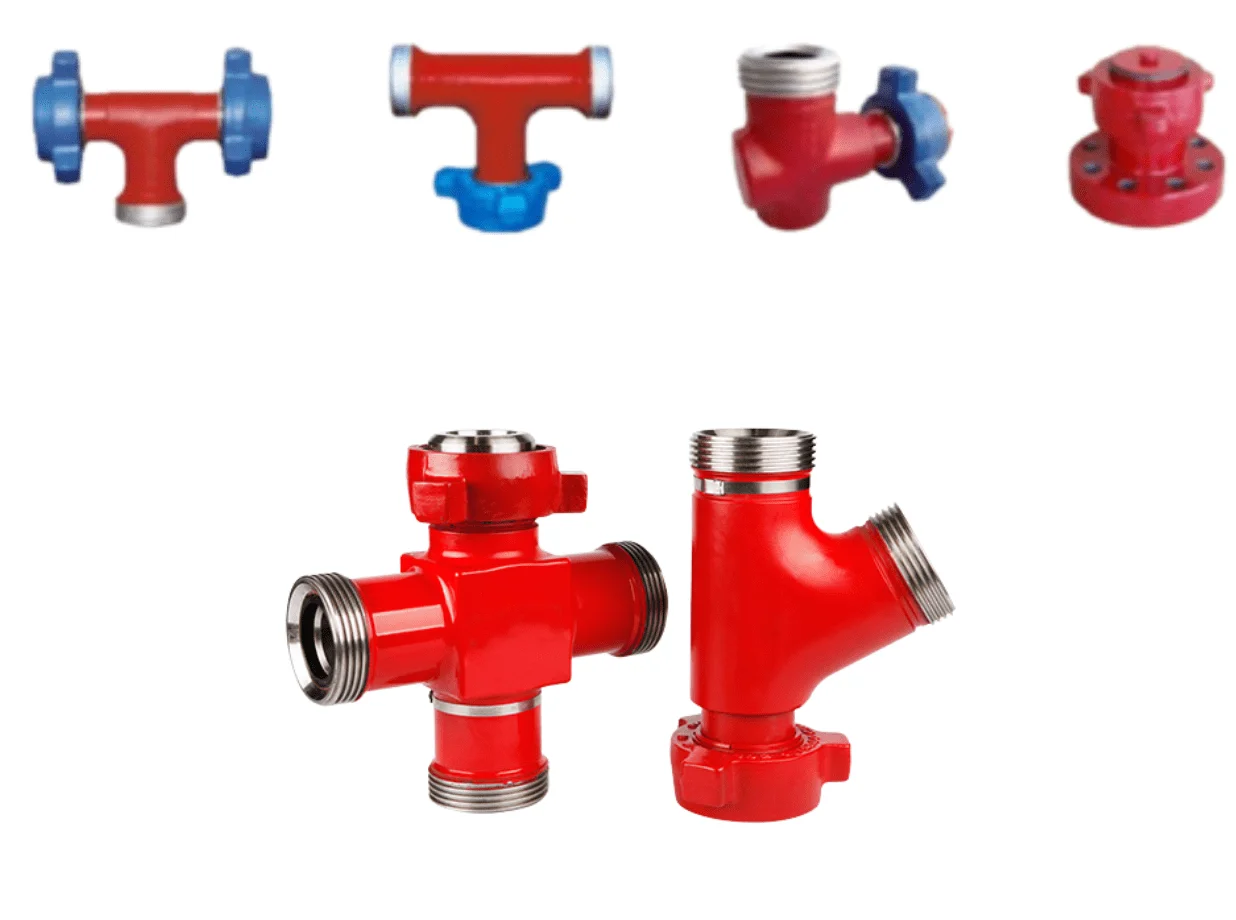

- Types: Tees, Elbows, Crosses, Wyes, and Laterals.
- End Connections: Fig 1502, 1002, and 602 Integral Wing Union ends.
- Service: Standard and Sour Gas (H2S) compliant with NACE MR-01-75.
- Design: Smooth internal bores to minimize turbulence and fluid erosion.

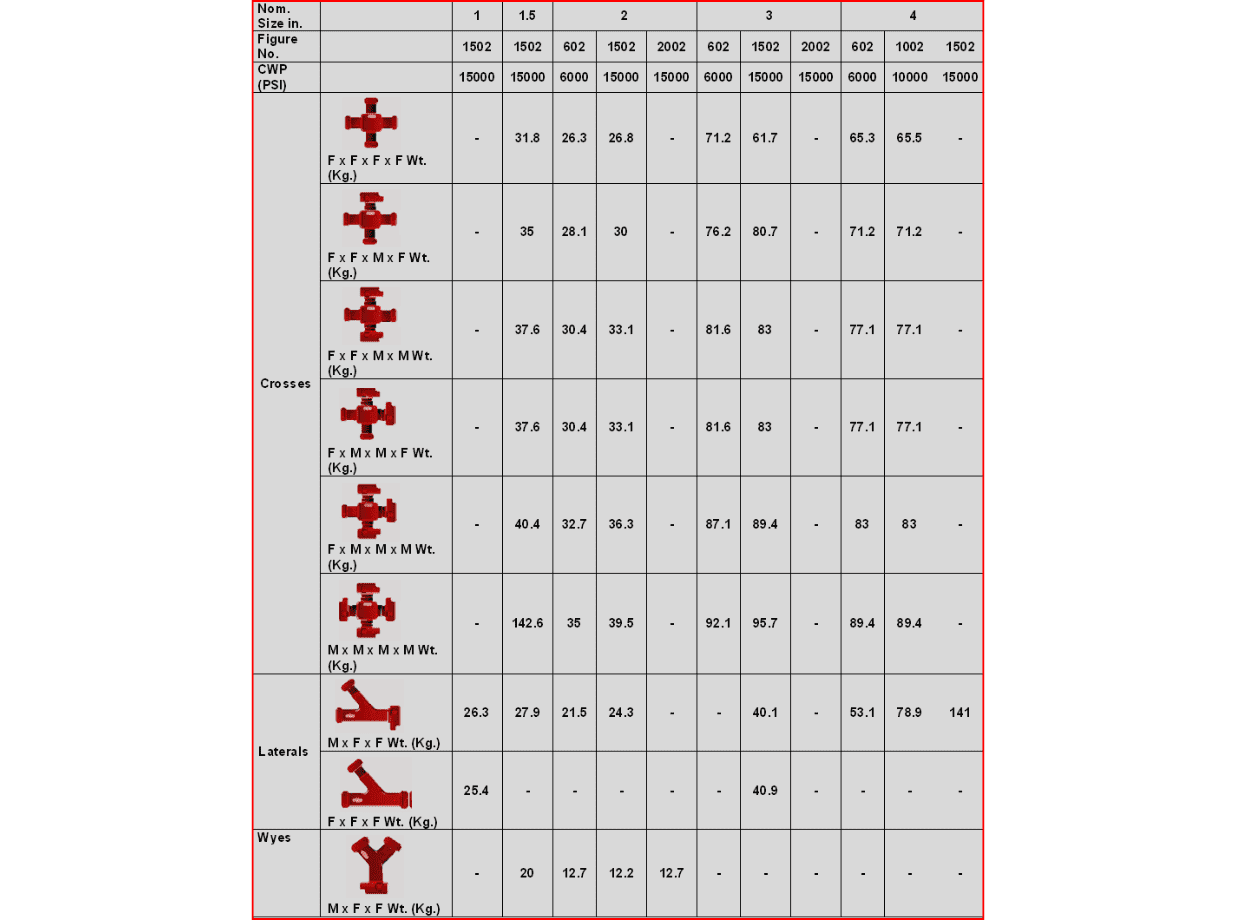

Integral Fitting Specifications

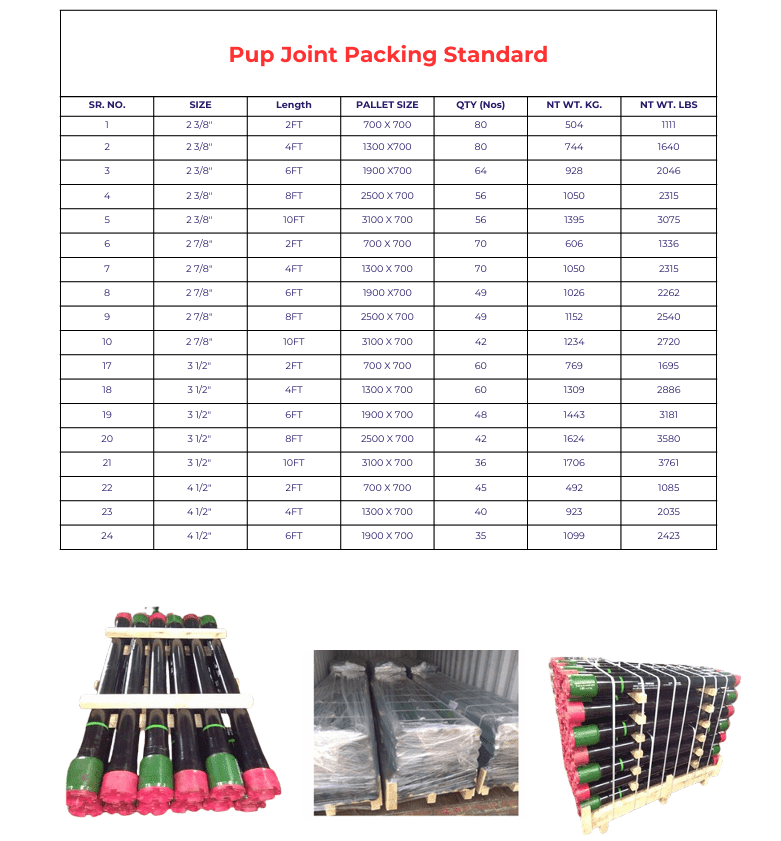

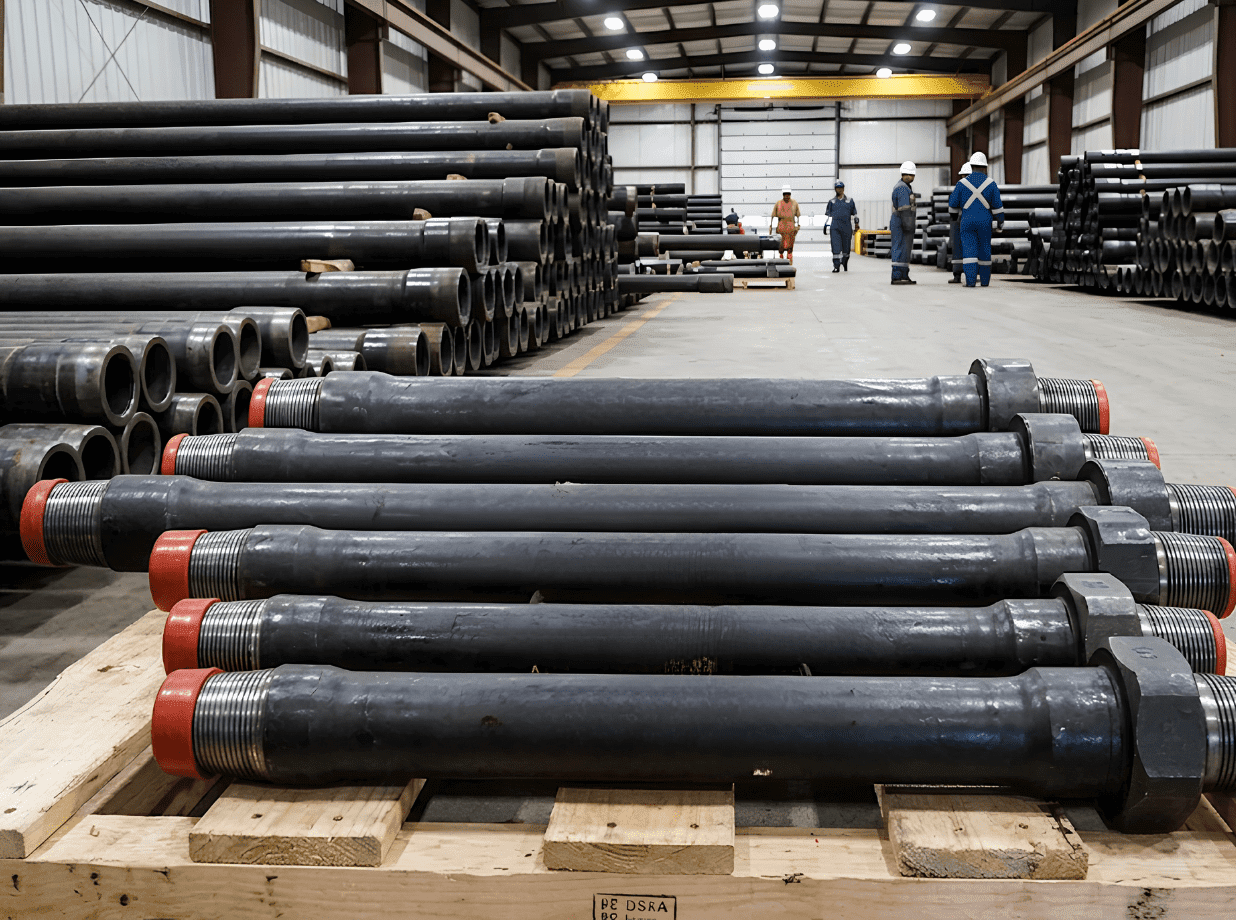

Pup Joints
Flowline Extensions
Precision-manufactured for high-pressure fluid handling, these pup joints are designed to provide temporary or permanent extensions to flowlines in drilling and well-servicing operations.
- Pressure: Up to 15,000 PSI CWP.
- Sizes: 2", 3", and 4" (Fig 602, 1002, 1502).
- Lengths: 1ft to 20ft (Custom sizes available).

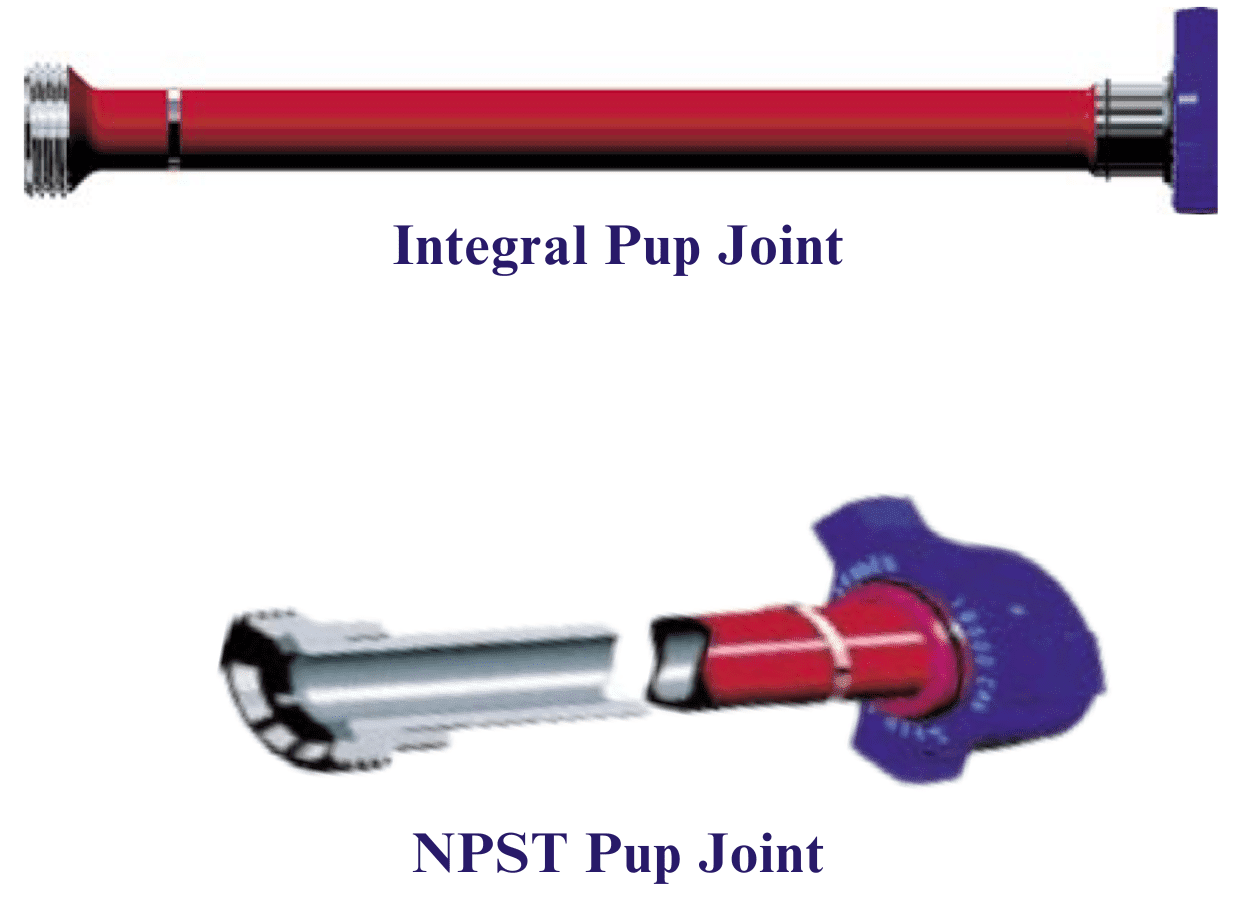

- Construction: Integral (one-piece forged), Welded, or NPST.
- Service: Standard and Sour Gas (NACE MR-01-75).
- Quality: 1.5x hydrostatic testing with full MTR traceability.
