Plug Valve
Dehu plug valves act as quarter-turn isolation valves, allowing operators to isolate portions of their flow line or specific pumping units from the entire pumping system in order to address pumping, operational or maintenance requirements.
The valves require minimum space, are simple to operate, exhibit a fast response, and add relatively little internal disturbance to the flow. Pressure drop across the valve is low.
Dehu plug valves are designed to reduce required operating torque to improve ease of use.
Dehu plug valves are available in sizes ranging from 1” to 3” in working pressures up to 15,000 psi.
They feature precision machined and ground components, which aid in proper sealing at a wide range of operating pressures and plating on critical areas for improved corrosion resistance.
- Standard service is used up to 15000 psi and tested at 22500 psi.
- Sour service(H2S) is used up to 10000 psi and tested at 15000 psi.
- Rugged construction with forged alloy steel body.
- Reliable performance at high pressure.
- Bottom entry design and easy maintenance.
- Valve parts are interchangeable with most major brands.
- Suitable for applications such as fracturing, cementing, acidizing and etc.
- Each valve is serialized.
- MTR and Test reports are available.
- Available in sizes 1” to 3” up to 15000 psi working pressure.
Rugged Design
Forged alloy steel body for extreme durability under high pressure.
Low Torque
Precision machined components to reduce required operating torque.
Fast Responsen
Simple quarter-turn operation for immediate flow isolation.
Serviceable
Bottom entry design allows for easy maintenance and component replacement.

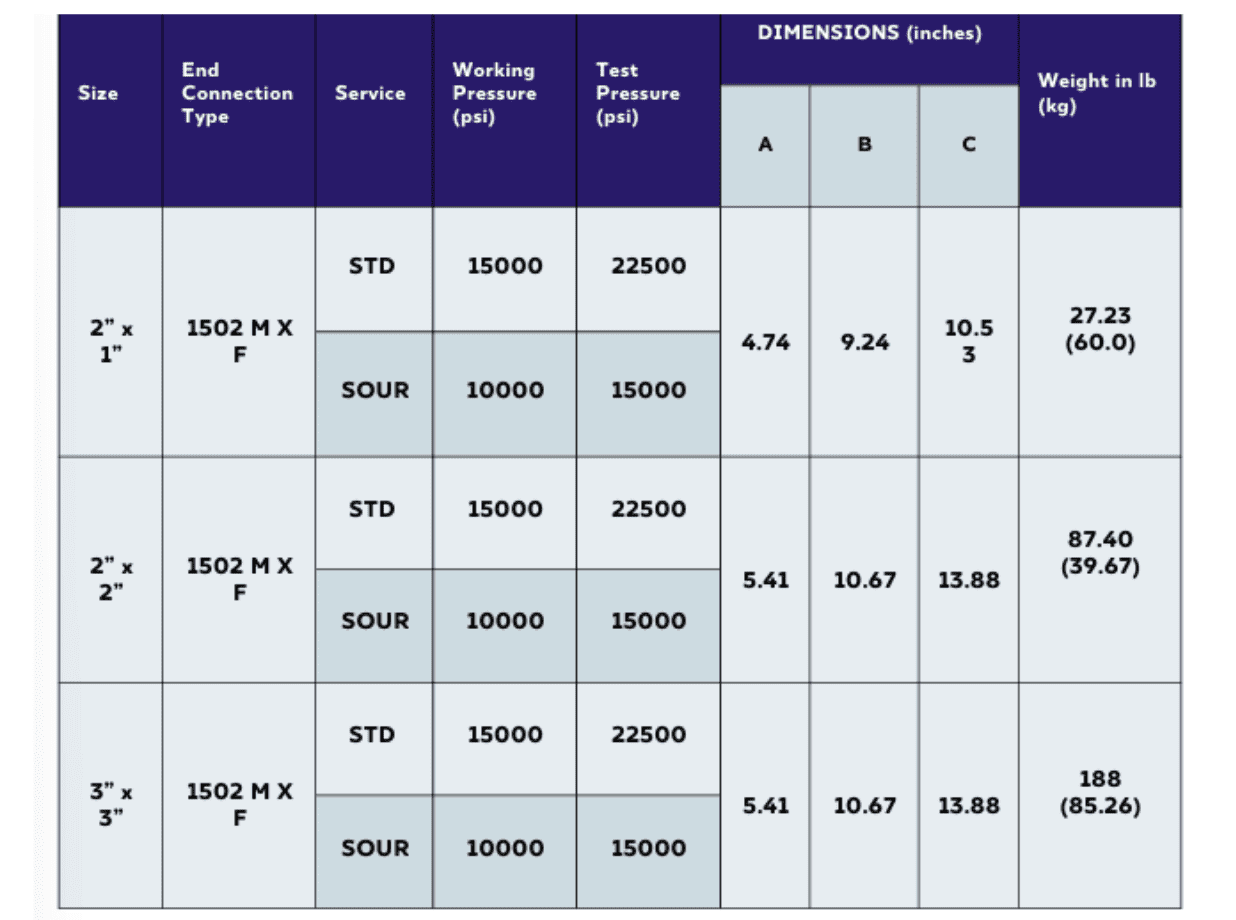

Technical Specifications

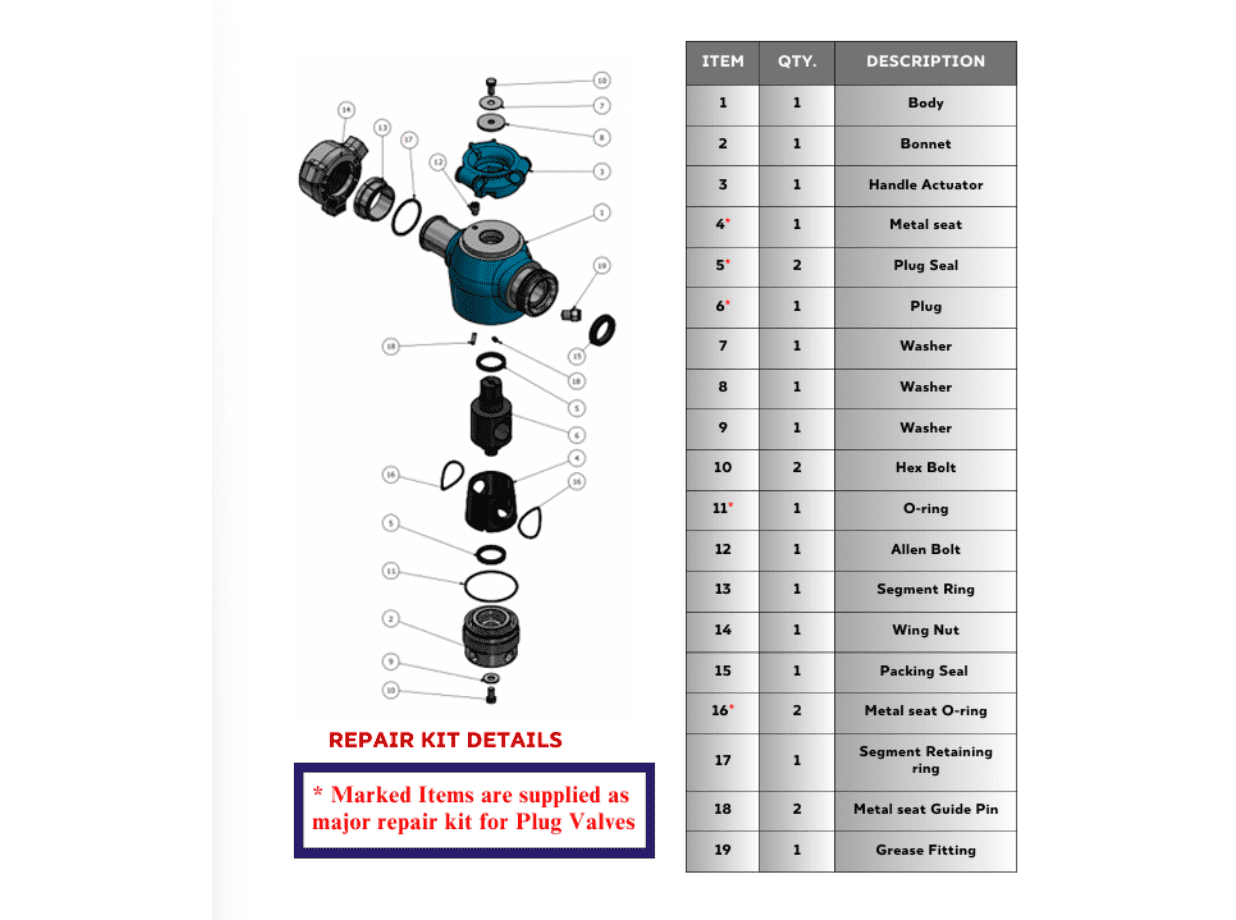

PLUG VALVE PART LIST
